BYT1

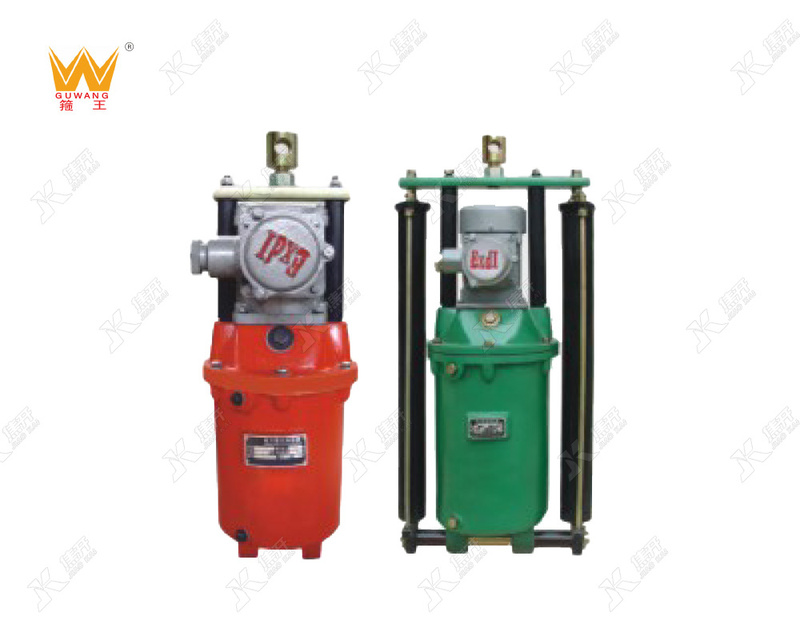

BYT1 series flameproof electric hydraulic thruster
Application:
It is widely used as a driving mechanism for various drum brakes and disc brakes.
The electro-hydraulic thruster is a compact drive control device that integrates a motor, centrifugal pump, and oil cylinder.
Its explosion-proof performance complies with the standards GB3836.1-2010 "Explosive Atmospheres Part 1: General Requirements for Equipment" and GB3836.2-2010 "Explosive Atmospheres Part 2: Equipment Protected by Flameproof Enclosures 'd'," with the explosion-proof marking "ExdI."
Ambient temperature:-20℃~40℃。
The installation location's monthly average maximum relative humidity during the wettest month does not exceed 90%, and the average minimum temperature for that month is not lower than 25°C, allowing condensation on the product surface due to temperature changes.
The altitude of the usage location should not exceed 1000 mm.
The surrounding environmental pollution level is permitted to be level 3.
Motor insulation class: Class E; Protection rating: IP54.
Power supply: Three-phase AC 380/660V, 660/1140V, 50Hz (60Hz).
